The Triple-R light bar range brings motorsport and world rally performance to the off-road market. Compared with the equivalent hybrid optic (T-16) product, the Triple-R 16 delivers 5x the peak intensity to deliver a mid-long range LED solution which will transform night-time and low-light off-road driving and recreation.
Tuned for a spot beam pattern, while still achieving a decent spread of light in the mid-long range, the Triple-R 16 comprises 16 high power LEDs producing 16,000 lumens at only 180 watts. The light delivers 1 lux at a distance of 900m, which at a mere 2.46kg, and 30” in length, it’s phenomenal levels of illumination for a product of its size. Through the use of the Triple-R Reeded Lens system, the beam pattern can be easily tailored to provide additional spread when, or if, required.
Comprising our unique vacuum metallised hooded reflector system (with 100% light utilisation), a CAE optimised heatsink, and electronic thermal management system, the light output from the Triple-R 16 is optimised at all times. Furthermore, the rear-facing orientation of the LEDs reduces ‘scatter’ and enhances lighting performance in environments where fog or dust is prevalent.
As with all Lazer products, we design our products in-house utilising the latest and most advanced component technologies to maximise performance and reliability. The unique styling of the Triple-R range alongside a fully aluminium enclosure, gore-tex breather membrane, and virtually unbreakable polycarbonate lens cover, means the Triple-R 16 will look good in even the toughest of environments.
The light comes supplied with vehicle wiring kit and both side brackets and sliding centre mounts, to ensure maximum flexibility and ease of vehicle fitment. For off-road driving the Triple-R 16 offers versatility and performance which is difficult to beat.
What’s included:
– 1x Triple-R 16 Standard LED Lamp
– 2x Centre Mount (1114k)
– 1x Side Bracket Kit (1118k)
– 1x Single-Lamp Wiring Kit with Switch (8216-12V-SW)
– 1x Wiring and Installation Instructions
Reviews (0)
Reviews
There are no reviews yet.
Be the first to review “Urban Lazer Triple-R 16 LED Spotlight Light Bar” Cancel reply
A kit of isolators to prevent any noise vibration from your 40"/1016mm LED Flood/Spot Combo.
Content

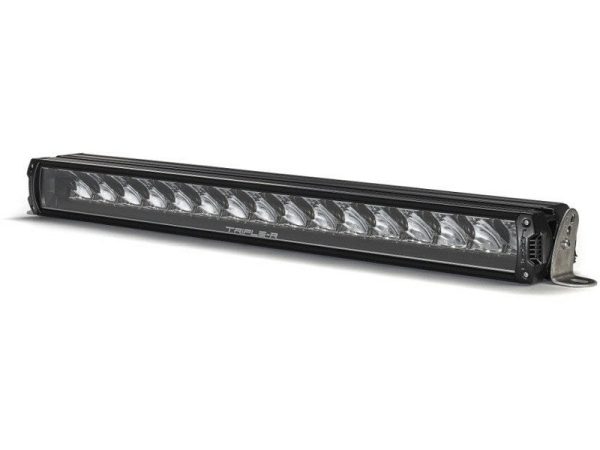

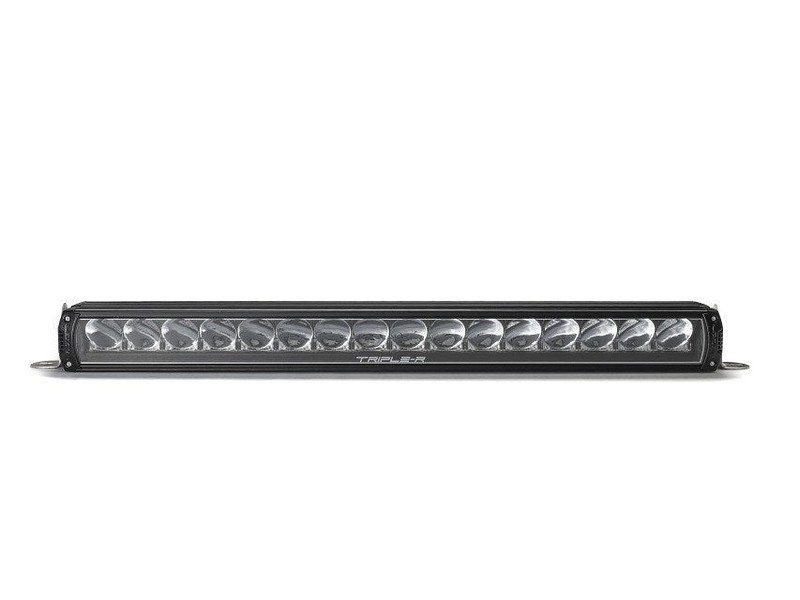

URBAN LAZER TRIPLE-R 16 LED SPOTLIGHT LIGHT BAR
The Triple-R light bar range brings motorsport and world rally performance to the off-road market. Compared with the equivalent hybrid optic (T-16) product, the Triple-R 16 delivers 5x the peak intensity to deliver a mid-long range LED solution which will transform night-time and low-light off-road driving and recreation.
Tuned for a spot beam pattern, while still achieving a decent spread of light in the mid-long range, the Triple-R 16 comprises 16 high power LEDs producing 16,000 lumens at only 180 watts. The light delivers 1 lux at a distance of 900m, which at a mere 2.46kg, and 30” in length, it’s phenomenal levels of illumination for a product of its size. Through the use of the Triple-R Reeded Lens system, the beam pattern can be easily tailored to provide additional spread when, or if, required.
Comprising our unique vacuum metallised hooded reflector system (with 100% light utilisation), a CAE optimised heatsink, and electronic thermal management system, the light output from the Triple-R 16 is optimised at all times. Furthermore, the rear-facing orientation of the LEDs reduces ‘scatter’ and enhances lighting performance in environments where fog or dust is prevalent.
As with all Lazer products, we design our products in-house utilising the latest and most advanced component technologies to maximise performance and reliability. The unique styling of the Triple-R range alongside a fully aluminium enclosure, gore-tex breather membrane, and virtually unbreakable polycarbonate lens cover, means the Triple-R 16 will look good in even the toughest of environments.
The light comes supplied with vehicle wiring kit and both side brackets and sliding centre mounts, to ensure maximum flexibility and ease of vehicle fitment. For off-road driving the Triple-R 16 offers versatility and performance which is difficult to beat.
What's included:
- 1x Triple-R 16 Standard LED Lamp
- 2x Centre Mount (1114k)
- 1x Side Bracket Kit (1118k)
- 1x Single-Lamp Wiring Kit with Switch (8216-12V-SW)
- 1x Wiring and Installation Instructions
AR40 V2 INTENSITY LED LIGHT BAR
Engineered in Australia and manufactured in the United States using the same patented lens/reflector technology as ARB’s existing Intensity LED driving lights, the ARB Intensity V2 LED light bar utilises Hyperspot™ optics and advanced flood optics to intensify the light output of the 40 OSRAM LEDs (2 rows of 20) encased in a virtually indestructible polycarbonate lens and powder coated, extruded aluminium body with high-pressure die-cast end caps.
Note: Intensity AR40 V1 LED Light Bar featured in video.
Designed to integrate with the top tube of the bull bar, the AR40 V2’s extruded alloy housing wraps around the tube, providing a low-profile integration with the bar work to maximise airflow to the cooling system and reduce obstructions. Its unique tube clamp mounting system sits out of view and delivers incredible stability for off-road use, eliminating vibration while being adjustable so that it won’t interfere with aerial mounting tabs, leaving them free to be used for their intended function.
Performance is paramount, with a heat sink that has over 435,000 mm² of surface area, allowing the light bar to dissipate heat quickly and operate at optimum efficiency even when the vehicle is stationary or at low speed.
Integral to the design is a range of virtually indestructible, moulded polycarbonate covers, hard-coated for scratch and UV resistance and available in a range of colours to further enhance protection from the elements.
OSRAM LEDS WITH HYPERSPOT™ TECHNOLOGY
To provide an intense amount of light in all driving conditions, the AR40 Intensity V2 Light Bar utilises OSRAM Giant LEDs to produce up to 25,080 lumens of raw light output (AR40CV2). For a single AR40CV2 combo, this means a light throw of 926m @ 1Lux and 40m of spread across the front of the vehicle. Plus, the warmer colour temperature (5700K) assists driver comfort and reduces eye fatigue.
A refined optic used to focus and intensify the light output as well as drive the OSRAM LEDs a great distance down the road, the Hyperspot™ technology also maintains clarity in the beam and controls the beam pattern to the correct area without spilling into unnecessary areas.
FEATURES
• A unique moulded rubber seal sits between the polycarbonate lens and cast aluminium body to create a watertight and dustproof seal, allowing the light to achieve an IP68 rating - meaning protection against dust ingress and submersion up to 3 metres.
• Virtually indestructible, UV resistant polycarbonate lens provides protection against road debris.
• High pressure cast aluminium end caps contains a Gore® breather, enabling expansion and contraction of internal air during temperature fluctuations, without allowing water or dust ingress.
• Large, extruded aluminium body provides superior strength and acts as a heat sink to draw heat generated from the electronics away from the LED array, increasing the efficiency and life of the LEDs.
• Mounting kits are available to suit three different tube diameters and are designed specifically to fit ARB bull bars. Constructed from extruded aluminium, with stainless steel fasteners, the unique mounts provide a solid clamp between the light and the tube, minimising vibration and movement. A pedestal mounting kit is also available for bull bar pan or roof mounting options.
• Each Intensity LED light bar is built to last, featuring over/under voltage protection, integrated thermal management and protection against radio frequency and electromagnetic interference.
AR40 DIAGRAM
Image 1 of 2
AR40 BEAM LUX SPECIFICATIONS
BULL BAR MOUNTING KITS
Image 1 of 1
For an integrated fit to your vehicle, mounting kits are designed specifically for ARB bull bars and are available in three sizes to cater for different tube diameters. Each kit is manufactured from extruded aluminium and incorporates stainless steel fasteners.
PEDESTAL MOUNTING KIT
Image 1 of 1
For increased versatility, an alternative to the bull bar mount is the pedestal mounting kit, enabling fitment to the pan of a bull bar or a roof rack. All fasteners are manufactured from stainless steel, with mounting hardware manufactured from a combination of aluminium and steel.
INTENSITY LIGHT BAR COVERS
Image 1 of 1
Manufactured from polycarbonate and hard coated for scratch and UV resistance, these covers will protect your Intensity light bar from the elements. Available in clear, amber and solid black.
RHINO-RACK MOUNTING KIT
Image 1 of 3
The AR40 Intensity roof rack mount bracket was introduced due to popular demand and utilises the AR40 hardware for the perfect fit. This mounting system provides a versatile option to suit the Rhino-Rack Pioneer® platform, tray, tradie & universal range.
The AR40 Rhino-Rack mount features 5mm powder coated steel brackets whilst being tilt-adjustable, lateral and longitudinal adjustable (not vertical adjustable).
*Shown with 2 kits fitted to suit two AR40 light bars.
RHINO-RACK MOUNT CONFIGURATIONS
Image 1 of 1
AR40 V2 INTENSITY LED LIGHT BAR
Engineered in Australia and manufactured in the United States using the same patented lens/reflector technology as ARB’s existing Intensity LED driving lights, the ARB Intensity V2 LED light bar utilises Hyperspot™ optics and advanced flood optics to intensify the light output of the 40 OSRAM LEDs (2 rows of 20) encased in a virtually indestructible polycarbonate lens and powder coated, extruded aluminium body with high-pressure die-cast end caps.
Note: Intensity AR40 V1 LED Light Bar featured in video.
Designed to integrate with the top tube of the bull bar, the AR40 V2’s extruded alloy housing wraps around the tube, providing a low-profile integration with the bar work to maximise airflow to the cooling system and reduce obstructions. Its unique tube clamp mounting system sits out of view and delivers incredible stability for off-road use, eliminating vibration while being adjustable so that it won’t interfere with aerial mounting tabs, leaving them free to be used for their intended function.
Performance is paramount, with a heat sink that has over 435,000 mm² of surface area, allowing the light bar to dissipate heat quickly and operate at optimum efficiency even when the vehicle is stationary or at low speed.
Integral to the design is a range of virtually indestructible, moulded polycarbonate covers, hard-coated for scratch and UV resistance and available in a range of colours to further enhance protection from the elements.
OSRAM LEDS WITH HYPERSPOT™ TECHNOLOGY
To provide an intense amount of light in all driving conditions, the AR40 Intensity V2 Light Bar utilises OSRAM Giant LEDs to produce up to 25,080 lumens of raw light output (AR40CV2). For a single AR40CV2 combo, this means a light throw of 926m @ 1Lux and 40m of spread across the front of the vehicle. Plus, the warmer colour temperature (5700K) assists driver comfort and reduces eye fatigue.
A refined optic used to focus and intensify the light output as well as drive the OSRAM LEDs a great distance down the road, the Hyperspot™ technology also maintains clarity in the beam and controls the beam pattern to the correct area without spilling into unnecessary areas.
FEATURES
• A unique moulded rubber seal sits between the polycarbonate lens and cast aluminium body to create a watertight and dustproof seal, allowing the light to achieve an IP68 rating - meaning protection against dust ingress and submersion up to 3 metres.
• Virtually indestructible, UV resistant polycarbonate lens provides protection against road debris.
• High pressure cast aluminium end caps contains a Gore® breather, enabling expansion and contraction of internal air during temperature fluctuations, without allowing water or dust ingress.
• Large, extruded aluminium body provides superior strength and acts as a heat sink to draw heat generated from the electronics away from the LED array, increasing the efficiency and life of the LEDs.
• Mounting kits are available to suit three different tube diameters and are designed specifically to fit ARB bull bars. Constructed from extruded aluminium, with stainless steel fasteners, the unique mounts provide a solid clamp between the light and the tube, minimising vibration and movement. A pedestal mounting kit is also available for bull bar pan or roof mounting options.
• Each Intensity LED light bar is built to last, featuring over/under voltage protection, integrated thermal management and protection against radio frequency and electromagnetic interference.
AR40 DIAGRAM
Image 1 of 2
AR40 BEAM LUX SPECIFICATIONS
BULL BAR MOUNTING KITS
Image 1 of 1
For an integrated fit to your vehicle, mounting kits are designed specifically for ARB bull bars and are available in three sizes to cater for different tube diameters. Each kit is manufactured from extruded aluminium and incorporates stainless steel fasteners.
PEDESTAL MOUNTING KIT
Image 1 of 1
For increased versatility, an alternative to the bull bar mount is the pedestal mounting kit, enabling fitment to the pan of a bull bar or a roof rack. All fasteners are manufactured from stainless steel, with mounting hardware manufactured from a combination of aluminium and steel.
INTENSITY LIGHT BAR COVERS
Image 1 of 1
Manufactured from polycarbonate and hard coated for scratch and UV resistance, these covers will protect your Intensity light bar from the elements. Available in clear, amber and solid black.
RHINO-RACK MOUNTING KIT
Image 1 of 3
The AR40 Intensity roof rack mount bracket was introduced due to popular demand and utilises the AR40 hardware for the perfect fit. This mounting system provides a versatile option to suit the Rhino-Rack Pioneer® platform, tray, tradie & universal range.
The AR40 Rhino-Rack mount features 5mm powder coated steel brackets whilst being tilt-adjustable, lateral and longitudinal adjustable (not vertical adjustable).
*Shown with 2 kits fitted to suit two AR40 light bars.
RHINO-RACK MOUNT CONFIGURATIONS
Image 1 of 1
LAZER ST-4 LED LIGHT BAR - 200MM
Delivering 3472 Raw lumens, the output from this lamp is roughly equal to the output from an OEM HID headlight. With a hybrid beam pattern ensuring excellent range and a broad close-range spread, this lamp gives drivers an outstanding level of nighttime visibility in front of the vehicle. See photo gallery for light performance comparisons.
Features:
- Fully ECE Approved for Road use
- 3 Year Warranty
- Electronic Thermal Management
- Fully Aluminum body
- IP67 Watertight
- Comes as standard with 70cm cable, including pre-wired male & female connectors.
- Vehicle wiring kits available as option parts

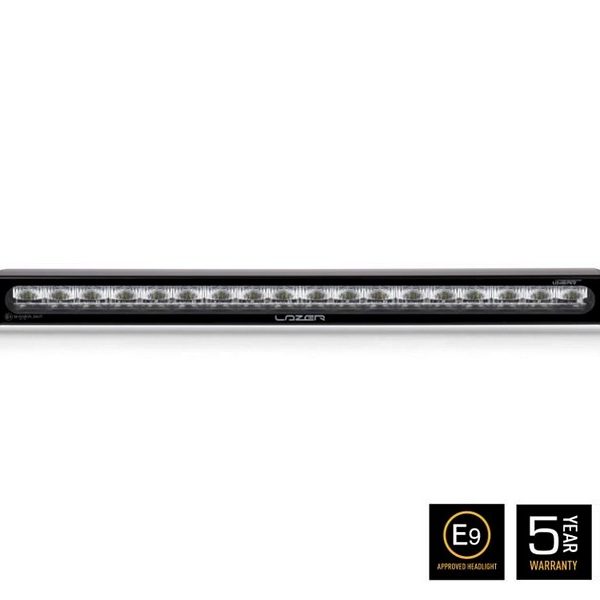

Lazer Linear 18 LED Light Bar
The Linear-18 is an ECE approved, road-legal versatile and economical auxiliary lighting solution which provides a significant upgrade when compared with any OE headlamps. The Linear-18 is ideal for passenger vehicles, where regulations allow for a single lamp to be connected direct to the standard high beams, and in particular where the lamp is being mounted low down at the front of the vehicle.
Utilizing highly efficient 3W LEDs, the Linear-18 delivers 6,750 lumens, and 1 Lux to 428m, an impressive performance considering the lamp only consumes minimal power at 63W and with a current draw of 4.4Amps. The light distribution can be best described as ‘wide’ which taking nothing away from the enviable distance illumination, does provide for a comfortable left/right spread of light, with a comparatively lower up/down spread (when compared to the equivalent ST or Triple-R product), that makes the Linear-18 especially well suited to lower install positions, such as vehicle grille or number plate mounting.
At 532mm in length, and with an aluminum body measuring just 40mm in height, and weighing a little over 1kg, this is an auxiliary LED light that can be subtly integrated onto any everyday road vehicle without compromising the vehicle aesthetics. A borderless 'unbreakable' polycarbonate front lens, with hardcoat lacquer, allows for improved aero performance and prevents the build-up of ice/snow/dirt that might otherwise interfere with the light distribution. Automotive-grade corrosion resistance, alongside stainless steel brackets and fasteners, ensures the high-end styling of the lamps themselves stays in prime condition for many years to come.
What's included:
- x1 Linear-18 LED Lamp
- x1 Side Mount (1126k)
- x1 Wiring and Installation Instructions
LIGHTBAR ISOLATOR KIT - BY FRONT RUNNER
• Effortlessly fits into the heat-sink fins on the back of 40"/1016mm LED Flood/Spot Combo w/Off-Road Performance Shield.
• Eliminates noise by absorbing harmonic vibrations created by wind moving across the surface of the light casing.
• Supplied as a set of 4 black rubber isolators.
Consists of:
• 4 x Isolators
• Fitting Instructions
Materials used:
• Black rubber
Product Dimensions:
• 70mm (2.8") L x 13mm (0.5") W x 46mm (1.8") H (Per Isolator)
Weight:
• 60g (2.8oz) (Per Isolator)
