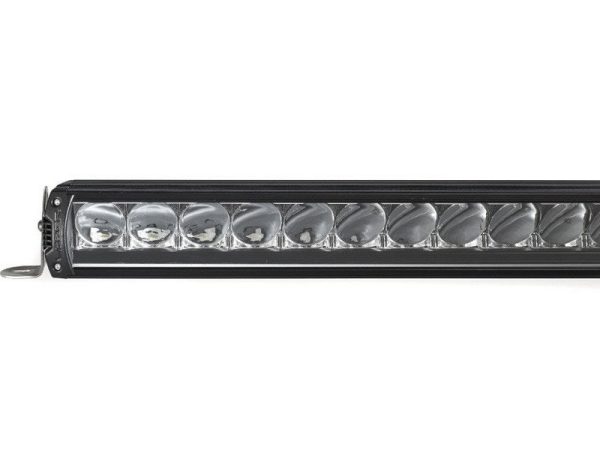

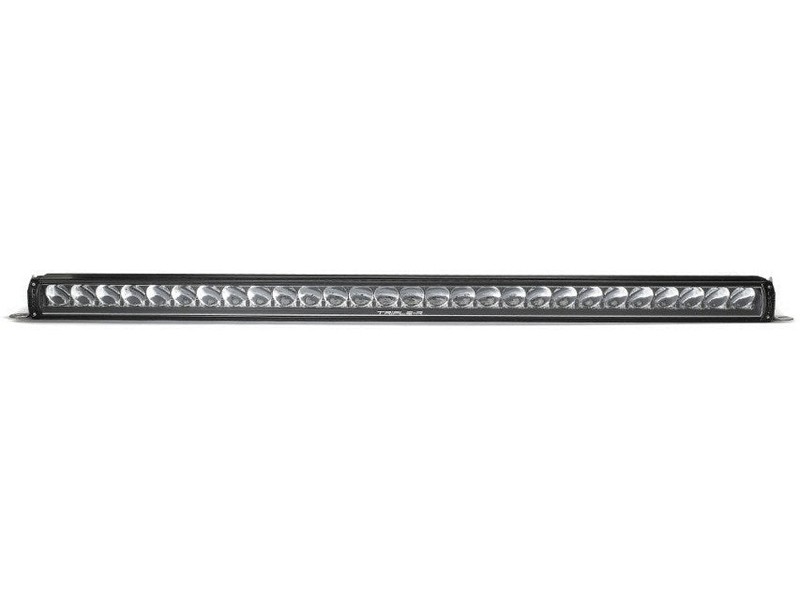

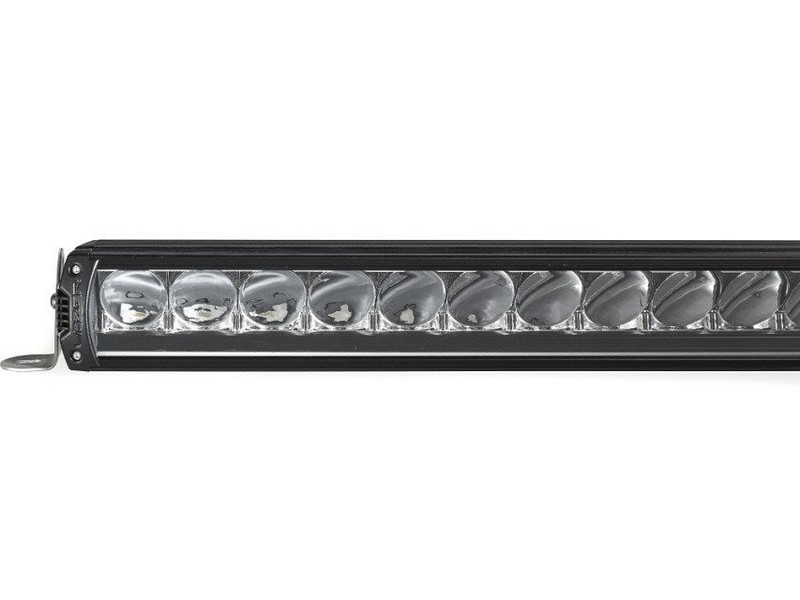

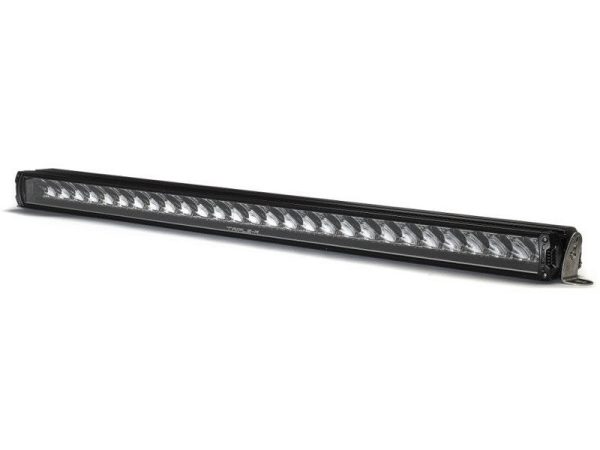

Content | LAZER TRIPLE-R 28 LED SPOTLIGHT LIGHT BAR
The Triple-R light bar range brings motorsport and world rally performance to the off-road market. At 51”, the Triple-R 28 is our biggest and most powerful LED lighting system which when used for night-time and low-light off-road driving and recreation, delivers an unrivalled level of long-range illumination surpassing all others.
Tuned for a spot beam pattern, while still achieving a decent spread of light in the mid-long range, the Triple-R 28 comprises 28 high power LEDs producing 25,200 lumens at only 315 watts. The light delivers 1 lux at a staggering distance of 1273m, while through the use of the Triple-R Reeded Lens system, the beam pattern can be easily tailored to provide additional spread when, or if, required.
Comprising our unique vacuum metallised hooded reflector system (with 100% light utilisation), a CAE optimised heatsink, and electronic thermal management system, the light output from the Triple-R 28 is optimised at all times. Furthermore, the rear-facing orientation of the LEDs reduces ‘scatter’ and enhances lighting performance in environments where fog or dust is prevalent.
As with all Lazer products, we design our products in-house utilising the latest and most advanced component technologies to maximise performance and reliability. The unique styling of the Triple-R range alongside a fully aluminium enclosure, gore-tex breather membrane, and virtually unbreakable polycarbonate lens cover, means the Triple-R 28 will look good in even the toughest of environments.The light comes with vehicle wiring kit and both side brackets and sliding centre mounts, to ensure maximum flexibility and ease of vehicle fitment. For off-road driving the Triple-R 28 delivers a level of illumination which quite simply will not be beaten.
What's included:
- 1x Triple-R 28 Standard LED Lamp
- 2x Centre Mount (1114k)
- 2x Side Bracket Kit (1118k)
- 1x Single-Lamp Wiring Kit with Switch (8216-12V-SW)
- 1x Wiring and Installation Instructions | LAZER TRIPLE-R 24 LED SPOTLIGHT LIGHT BAR
The Triple-R light bar range brings motorsport and world rally performance to the off-road market. Compared with the equivalent hybrid optic (T-24) product, the Triple-R 24 delivers 5x the peak intensity to deliver a mid-long range LED solution which leaves little to the imagination for all night-time off-road driving and recreational use.
Tuned for a spot beam pattern, while still achieving a decent spread of light in the mid-long range, the Triple-R 24 comprises 24 high power LEDs producing 21,600 lumens at only 270 watts. The light delivers 1 lux at an awe-inspiring distance of 1100m; while at 44” in length, the light is the perfect match of maximum illumination with feasible mounting options for many off-road vehicles. Through the use of the Triple-R Reeded Lens system, the beam pattern can be easily tailored to provide additional spread when, or if, required.
Comprising our unique vacuum metallized hooded reflector system (with 100% light utilization), a CAE optimized heatsink, and electronic thermal management system, the light output from the Triple-R 24 is optimized at all times. Furthermore, the rear-facing orientation of the LEDs reduces ‘scatter’ and enhances lighting performance in environments where fog or dust is prevalent.
As with all Lazer products, we design our products in-house utilizing the latest and most advanced component technologies to maximise performance and reliability. The unique styling of the Triple-R range alongside a fully aluminum enclosure, Gore-Tex breather membrane, and virtually unbreakable polycarbonate lens cover, means the Triple-R 24 will look good in even the toughest of environments.
The light comes supplied with vehicle wiring kit and both side brackets and sliding centre mounts, to ensure maximum flexibility and ease of vehicle fitment. For off-road driving the Triple-R 24 delivers a level of lighting performance which needs to be seen to be believed.
What's included:
- 1x Triple-R 24 Standard LED Lamp
- 2x Centre Mount (1114k)
- 1x Side Bracket Kit (1118k)
- 1x Single-Lamp Wiring Kit with Switch (8216-12V-SW)
- 1x Wiring and Installation Instructions | URBAN LAZER TRIPLE-R 16 LED SPOTLIGHT LIGHT BAR
The Triple-R light bar range brings motorsport and world rally performance to the off-road market. Compared with the equivalent hybrid optic (T-16) product, the Triple-R 16 delivers 5x the peak intensity to deliver a mid-long range LED solution which will transform night-time and low-light off-road driving and recreation.
Tuned for a spot beam pattern, while still achieving a decent spread of light in the mid-long range, the Triple-R 16 comprises 16 high power LEDs producing 16,000 lumens at only 180 watts. The light delivers 1 lux at a distance of 900m, which at a mere 2.46kg, and 30” in length, it’s phenomenal levels of illumination for a product of its size. Through the use of the Triple-R Reeded Lens system, the beam pattern can be easily tailored to provide additional spread when, or if, required.
Comprising our unique vacuum metallised hooded reflector system (with 100% light utilisation), a CAE optimised heatsink, and electronic thermal management system, the light output from the Triple-R 16 is optimised at all times. Furthermore, the rear-facing orientation of the LEDs reduces ‘scatter’ and enhances lighting performance in environments where fog or dust is prevalent.
As with all Lazer products, we design our products in-house utilising the latest and most advanced component technologies to maximise performance and reliability. The unique styling of the Triple-R range alongside a fully aluminium enclosure, gore-tex breather membrane, and virtually unbreakable polycarbonate lens cover, means the Triple-R 16 will look good in even the toughest of environments.
The light comes supplied with vehicle wiring kit and both side brackets and sliding centre mounts, to ensure maximum flexibility and ease of vehicle fitment. For off-road driving the Triple-R 16 offers versatility and performance which is difficult to beat.
What's included:
- 1x Triple-R 16 Standard LED Lamp
- 2x Centre Mount (1114k)
- 1x Side Bracket Kit (1118k)
- 1x Single-Lamp Wiring Kit with Switch (8216-12V-SW)
- 1x Wiring and Installation Instructions | Lazer Linear-6 Elite LED Light Bar
Quite simply the ultimate in low profile auxiliary LED lighting, providing unrivalled levels of light output, optimised for everyday road use, where either space is a limiting factor in regards any installation, or the preference is for a sleek, aerodynamic solution to get noticed more at night than during the day.
The Linear-6 Elite utilises x12 highly efficient 3W LEDs, the same as used in our 2018 WRC lighting solutions, which together deliver 4,050 lumens, and 1 lux to over 280m. Impressive considering the lamp weighs 495grams and has the power consumption of just 42W. While this foundation of the Linear Elite’s lighting performance appears good on paper, it is through advances in our material and electronics design, that the Linear Elite really stands apart. In particular, the vacuum-metallised high-reflectivity optics carefully designed and engineered utilising the latest CAD design and light simulation software, that provide for superior light distribution when out on the road, where it really matters. A reduced vertical spread enables more light to be directed to the sides of the road, while the high intensity of the LEDs ensures enviable distance illumination.
At just 232mm in length and 40mm in height, the Linear-6 Elite is engineered to be easy to fit in tight and confined spaces. The clean design of the Linear range provides for a premium look and feel, that also ensures minimal impact on airflow around any installation. The supplied stainless steel side brackets allow flexibility in the mounting location and position, while stainless steel anti-theft fasteners (included as standard), means the light will stay safe and secure.
Fully ECE approved for on-road use, the Linear range benefits from a comprehensive 5-year warranty, and a lifetime guarantee on the polycarbonate lens, featuring hardcoat lacquer. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage and ensures the light performs as well today as it will in many years’ time.
What's included:
- x1 Linear-6 Elite LED Lamp
- x1 Anti-Theft Side Mount (1127k)

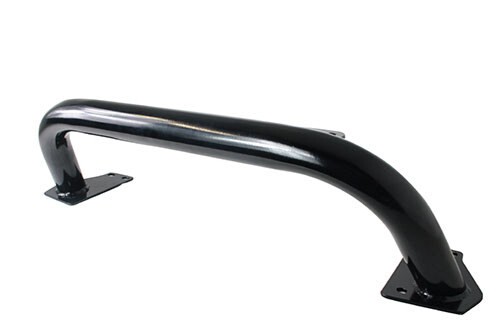

- x1 Wiring and Installation Instructions | TERRAFIRMA SPOT LIGHT BAR TO SUIT TF002 WINCH BUMPERS - DEF
These relatively shallow but chunky bars are designed to fit 2,3 or 4 spot lights depending on their diameter.
There is a winch bumper version that is slightly taller to clear winches with built in solenoids which suits both air con and non air con vehicles and a shallower option for standard and non winch heavy duty bumpers.
Made from 2.5" diameter tube and black powder coated, which really looks the part on all Defenders.
This listing is suitable for use with the following bumpers:
https://www.defenderparts.co/product/terrafirma-comm-winch-bumper-with-ac-for-tf-winch-10x4-5-90-110-130/
https://www.defenderparts.co/product/terrafirma-comm-winch-bumper-no-aircon-for-tf-winch-10x4-5-90-110-130/
https://www.defenderparts.co/product/terrafirma-comm-winch-bumper-no-air-con-for-warn-90-110-130/
https://www.defenderparts.co/product/terrafirma-comm-winch-bumper-with-air-con-for-warn-90-110-130/
https://www.defenderparts.co/product/terrafirma-pro-taper-small-frame-winch-bumper-non-air-con-for-defender/
https://www.defenderparts.co/product/terrafirma-pro-taper-small-frame-winch-bumper-with-air-con-for-defender/
https://www.defenderparts.co/product/terrafirma-pro-taper-large-frame-winch-non-air-con-for-defender/
https://www.defenderparts.co/product/terrafirma-pro-taper-large-frame-winch-bumper-with-air-con-for-defender/
Fits ALL DEFENDERS.
| LAZER RS-4 LED LIGHT BAR INC. DRL - 200MM
Delivering 3632 raw lumens (3472lm from 4 x 10W LEDs, 160lm from 10 x 0.5W LEDs), roughly equal to the light output from an HID headlight. Tuned for a broad beam pattern, this lamp gives drivers an outstanding level of night time visibility in front of the vehicle. See photo gallery for light performance comparisons. Available in black & chrome effect powder coat.
Features:
- Fully ECE Approved for Road use
- 3 Year Warranty
- Electronic Thermal Management
- Fully Aluminium body
- IP67 Watertight
- Comes as standard with 70cm cable, including pre-wired male & female connectors.
- Vehicle wiring kits available as option parts |
