Description
RT30

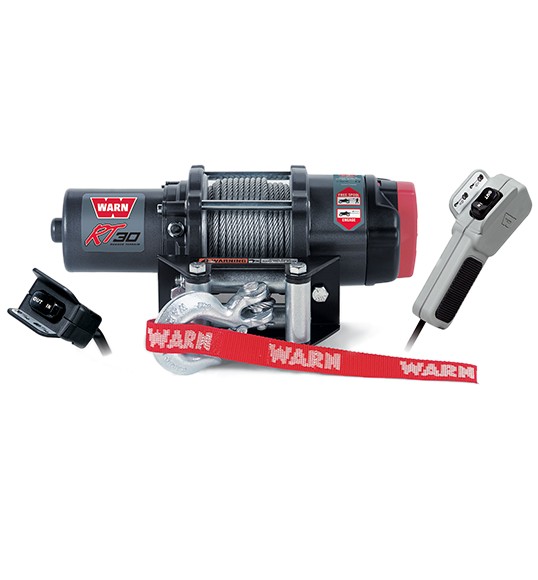

The RT30 ATV winch has 1360kg of pulling power and comes with 15m of aircraft grade wire rope and a convenient handheld remote to ensure you can get the job done quickly and easily.

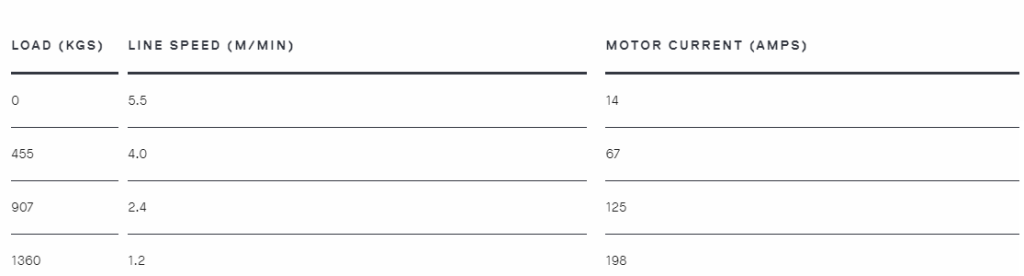

PERFORMANCE DATA
Description
Additional information
Additional information
| Maximum Load – (Single Line) | 1360kgs (3,000lbs) |
|---|---|
| Motor | 12V DC,0.9hp permanent magnet |
| Control | Corded remote, handlebar-mounted mini-rocker control switch |
| Gear Train | 3 Stage Planetary |
| Gear Ratio | 154:1 |
| Clutch – (Freespooling) | Sliding pin and ring gear |
| Cable | 15m x 5mm dia. |
| Brake | Disk brake |
| Dimensions | L33.3cm x D12cm x H12cm |
| Drum Diameter/Length | 5.2cm/7.4cm |
| Weight | 7.1kg |
