Content | SPARE WHEEL CLAMP / LOW PROFILE - BY FRONT RUNNER

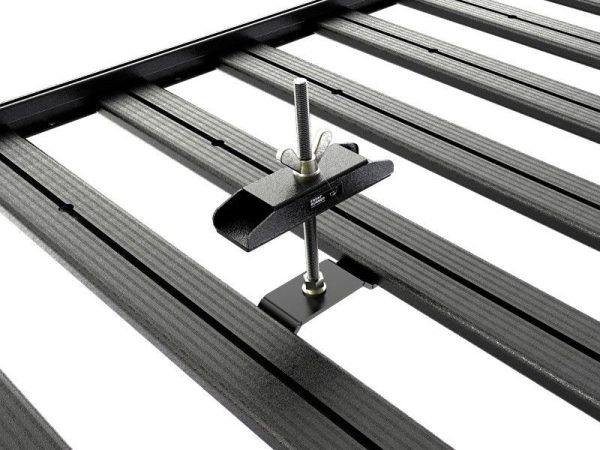

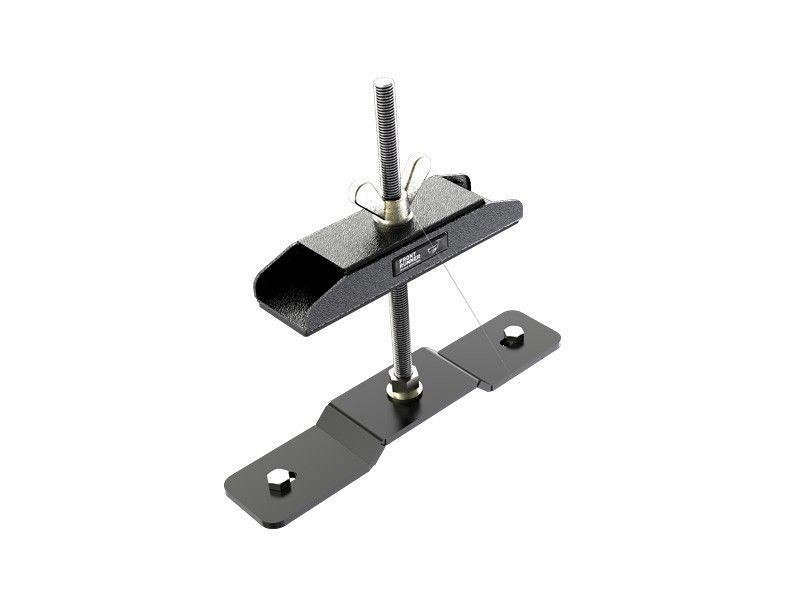

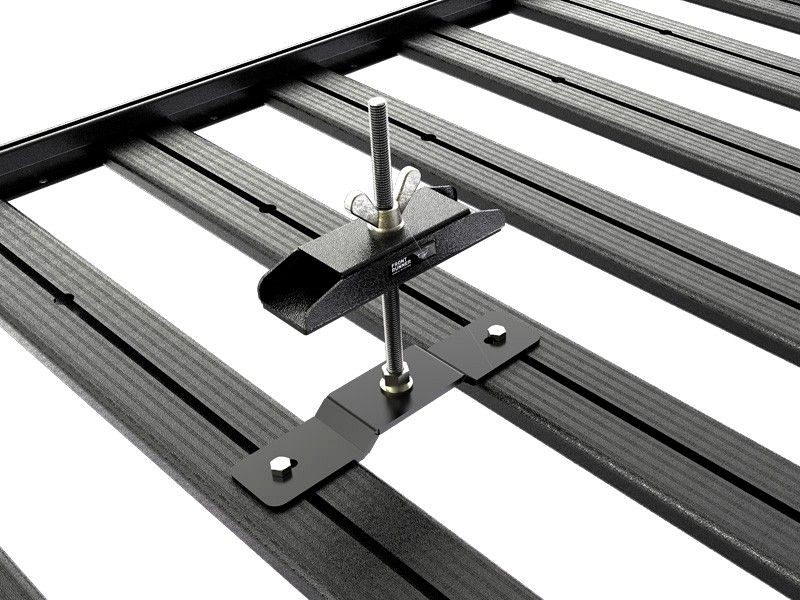

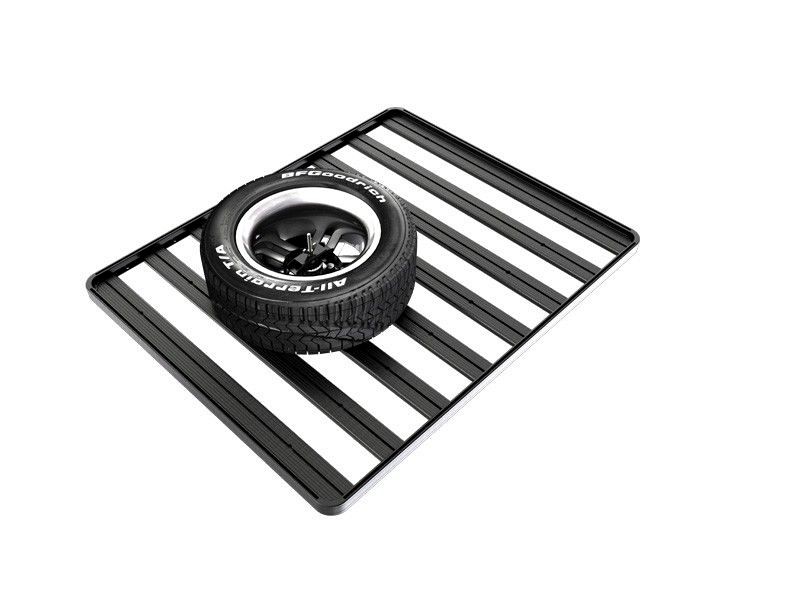

This Front Runner Spare Wheel Clamp is designed to hold your spare wheel to a Front Runner Roof Rack or Front Runner Load Bar set.
Mounts across 2 slats and can handle mostly any size wheel.

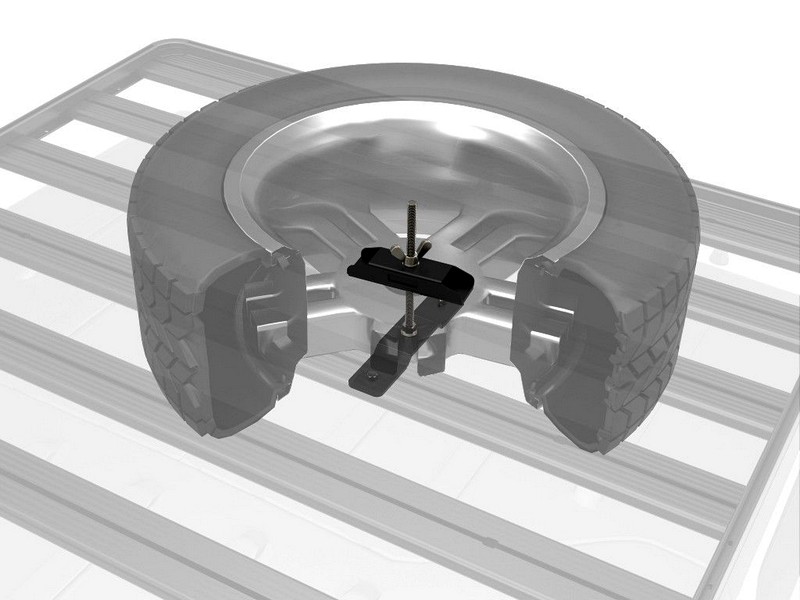

Specifically mounts a raised dish rim with the hollow side facing up.
Tightens down to the back side of the wheel to protect your wheel finish, and can accommodate even the deepest offsets.
| ZEON PLATINUM 10

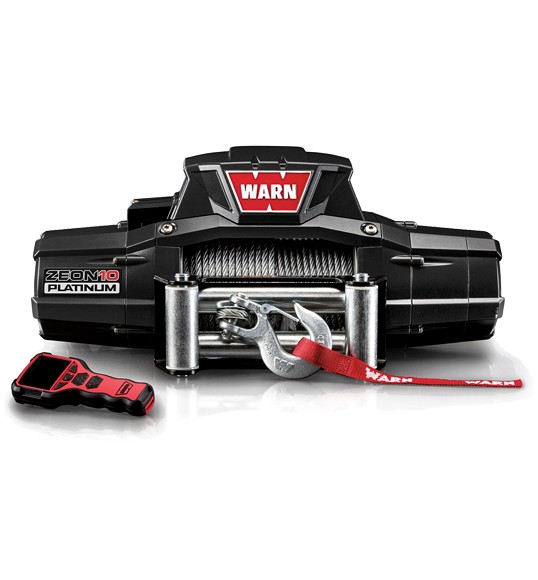

The ZEON Platinum 10 winch offers incredible pulling power that is built to last. With a tough satin black powder coat finish, this winch incorporates a new motor and gear train, faster line speed and full IP68 ingress protection rating to keep the elements out.

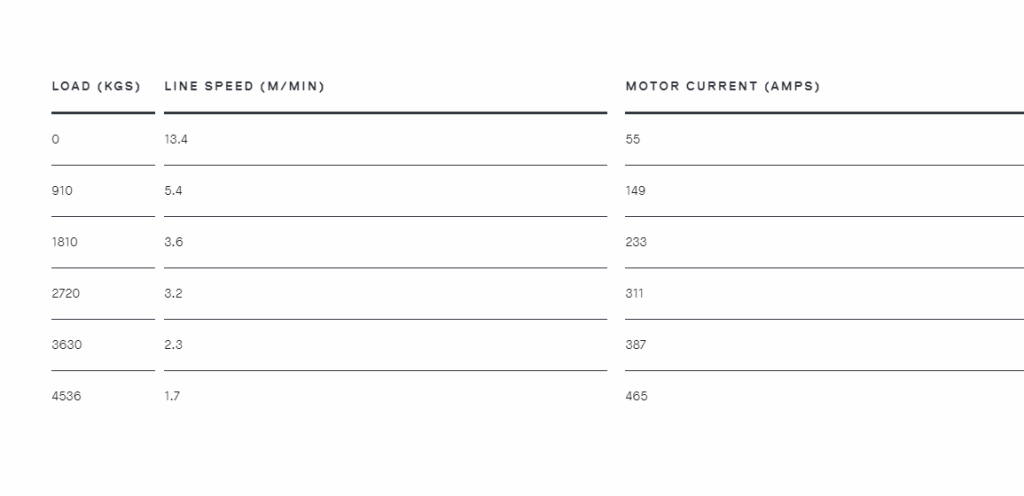

PERFORMANCE DATA
WARN ZEON PLATINUM WINCHES
Building on the success of the groundbreaking ZEON range, the ZEON Platinum lineup sets the benchmark as part of Warn’s ‘ultimate performance’ winch range. With a 20% faster line speed, fully sealed IP68 rated casing, all new motor and gearbox, ZEON Platinum is the dependable solution you can rely on in extreme situations.
ZEON Platinum is the first of its kind, offering full wireless operation, including electronic clutch control, via a rugged and waterproof handheld remote.
A convertible control pack provides plenty of flexibility by allowing the pack to be removed and mounted separately from the winch. Not only does this allow the winch to be mounted in tight spaces, it also provides the option of a more low profile look.
The ZEON Platinum winch range is supplied with a limited lifetime warranty.
• Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks.
• Series wound motor with a larger armature featuring 15% more copper provides incredible pulling power. A new brush assembly design ensures a long service life.
• The satin black powder coated exterior is IP68 rated, offering the highest level of water and dust ingress protection
• Lightweight, large diameter winch drum reduces rope wear, and has an integrated rope anchor for easy rope installation.
• Available with steel or Warn Spydura synthetic rope, the Zeon Platinum offers pulling capacities from 10,000lbs to 12,000lbs.
• A remotely operated clutch makes winch operation far easier, and will automatically engage if the winch is inactive for more than five minutes.
| ZEON PLATINUM 12-S
The ZEON Platinum 12-S winch offers relentless pulling power to get you out of the most extreme situations. Built to survive severe expedition use with an all new new motor and gear train, faster line speed and full IP68 ingress protection rating, the Platinum 12-S is your dependable solution when you need it most.
PERFORMANCE DATA
WARN ZEON PLATINUM WINCHES
Building on the success of the groundbreaking ZEON range, the ZEON Platinum lineup sets the benchmark as part of Warn’s ‘ultimate performance’ winch range. With a 20% faster line speed, fully sealed IP68 rated casing, all new motor and gearbox, ZEON Platinum is the dependable solution you can rely on in extreme situations.
ZEON Platinum is the first of its kind, offering full wireless operation, including electronic clutch control, via a rugged and waterproof handheld remote.
A convertible control pack provides plenty of flexibility by allowing the pack to be removed and mounted separately from the winch. Not only does this allow the winch to be mounted in tight spaces, it also provides the option of a more low profile look.
The ZEON Platinum winch range is supplied with a limited lifetime warranty.
• Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks.
• Series wound motor with a larger armature featuring 15% more copper provides incredible pulling power. A new brush assembly design ensures a long service life.
• The satin black powder coated exterior is IP68 rated, offering the highest level of water and dust ingress protection
• Lightweight, large diameter winch drum reduces rope wear, and has an integrated rope anchor for easy rope installation.
• Available with steel or Warn Spydura synthetic rope, the Zeon Platinum offers pulling capacities from 10,000lbs to 12,000lbs.
• A remotely operated clutch makes winch operation far easier, and will automatically engage if the winch is inactive for more than five minutes.
| ZEON PLATINUM 12
The ZEON Platinum 12 winch offers relentless pulling power to get you out of the most extreme situations. Built to survive severe expedition use, the Platinum 12 is your dependable solution when you need it most. With an all new new motor and gear train, faster line speed and full IP68 ingress protection rating, you can
PERFORMANCE DATA
WARN ZEON PLATINUM WINCHES
Building on the success of the groundbreaking ZEON range, the ZEON Platinum lineup sets the benchmark as part of Warn’s ‘ultimate performance’ winch range. With a 20% faster line speed, fully sealed IP68 rated casing, all new motor and gearbox, ZEON Platinum is the dependable solution you can rely on in extreme situations.
ZEON Platinum is the first of its kind, offering full wireless operation, including electronic clutch control, via a rugged and waterproof handheld remote.
A convertible control pack provides plenty of flexibility by allowing the pack to be removed and mounted separately from the winch. Not only does this allow the winch to be mounted in tight spaces, it also provides the option of a more low profile look.
The ZEON Platinum winch range is supplied with a limited lifetime warranty.
• Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks.
• Series wound motor with a larger armature featuring 15% more copper provides incredible pulling power. A new brush assembly design ensures a long service life.
• The satin black powder coated exterior is IP68 rated, offering the highest level of water and dust ingress protection
• Lightweight, large diameter winch drum reduces rope wear, and has an integrated rope anchor for easy rope installation.
• Available with steel or Warn Spydura synthetic rope, the Zeon Platinum offers pulling capacities from 10,000lbs to 12,000lbs.
• A remotely operated clutch makes winch operation far easier, and will automatically engage if the winch is inactive for more than five minutes.
| COMMERCIAL WINCH BUMPER FITS DEFENDER

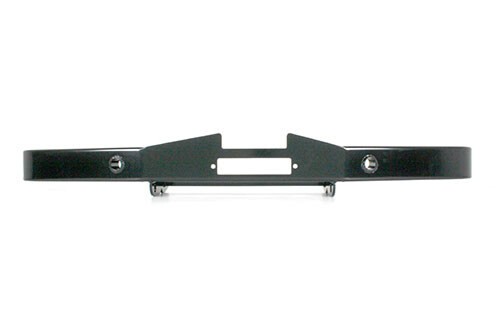

- Terrafirma Commercial heavy duty winch bumper for Warn winches upto 12000lbs, including built in jacking and recovery points for Defenders without air conditioning.
- Fits ALL DEFENDERS. | ZEON 10
It might have a stylish new design but do not be fooled, the ZEON 10 winch is built to last. With features such as a heat dissipating brake, smooth planetary gear train, integrated look, new motor, fast line speed and IP68 rating, the ZEON range is full of features that are sure to satisfy the serious 4wder.der.
PERFORMANCE DATA
WARN ZEON WINCHES
Engineered from the ground up, the ZEON winch range sets a new standard in Warn’s premium winch range. Smoother, quieter, stronger and better sealed with an IP68 rating makes this range ready for serious action.
A convertible control pack provides plenty of flexibility by allowing the pack to be removed and mounted separately from the winch. Not only does this allow the winch to be mounted in tight spaces, it also provides the option of a more low profile look.
The ZEON winch range also includes a limited lifetime warranty.
FEATURES
• Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks.
• Satin black powder coated finish with stainless steel fasteners and clutch lever to inhibit corrosion.
• Unique exterior incorporates dust and water rating to IP68 to keep the elements out.
• Lightweight, large diameter winch drum reduces rope wear, and has an integrated rope anchor for easy rope installation.
• Available with steel or Warn Spydura synthetic rope, the Zeon offers pulling capacities from 8,000lbs to 12,000lbs.
• New design planetary gear train and series wound motor delivers fast, quiet and reliable pulling power.
|
Additional information |
Consists of: |
1x Rack Bracket
1x Clamp Bracket
1x Mounting Hardware
|
Materials used: |
Black powder-coated 3CR12 stainless steel
|
Product Dimensions: |
263mm (10.4") L x 55mm (2.2") W x 242mm (9.5") H
|
Weight: |
1.5kg (3.3lbs)
|
|
Maximum Load – (Single Line) |
4536kgs (10,000lbs)
|
Motor |
12V DC, series wound
|
Control |
Advanced Wireless
|
Gear Train |
3 Stage Planetary
|
Gear Ratio |
162:1
|
Clutch – (Freespooling) |
Rotating ring gear
|
Cable |
9.52mm x 24.4m
|
Brake |
Automatic mechanical cone
|
Dimensions With Control Pack |
L 61.59cm x W 18.16cm x H 26.71cm
|
Dimensions Without Control Pack |
L 61.59cm x W 18.16cm x H 19.9cm
|
Drum Diameter/Length |
9cm/22.9cm
|
Weight |
44kg
|
|
Maximum Load – (Single Line) |
5443kgs (10,000lbs)
|
Motor |
12V DC, series wound
|
Control |
Advanced Wireless
|
Gear Train |
3 Stage Planetary
|
Gear Ratio |
216:1
|
Clutch – (Freespooling) |
Rotating ring gear
|
Cable |
9.5mm x 30..5m
|
Brake |
Automatic mechanical cone
|
Dimensions With Control Pack |
L 61.59cm x W 18.16cm x H 26.71cm
|
Dimensions Without Control Pack |
L 61.59cm x W 18.16cm x H 19.9cm
|
Drum Diameter/Length |
8cm/22.9cm
|
Weight |
34kg
|
|
Maximum Load – (Single Line) |
5443kgs (12,000lbs)
|
Motor |
12V DC, series wound
|
Control |
Advanced Wireless
|
Gear Train |
3 Stage Planetary
|
Gear Ratio |
216:1
|
Clutch – (Freespooling) |
Rotating ring gear
|
Cable |
9.52mm x 24.4m
|
Brake |
Automatic mechanical cone
|
Dimensions With Control Pack |
L 61.59cm x W 18.16cm x H 26.71cm
|
Dimensions Without Control Pack |
L 61.59cm x W 18.16cm x H 19.9cm
|
Drum Diameter/Length |
8cm/22.9cm
|
Weight |
44kg
|
|
Brand |
TERRAFIRMA
|
Weight (kg) |
24.150000
|
|
Maximum Load – (Single Line) |
4536kgs (10,000lbs)
|
Motor |
12V DC, series wound
|
Control |
Remote switch, 3,7m lead
|
Gear Train |
3 Stage Planetary
|
Gear Ratio |
216:1
|
Clutch – (Freespooling) |
Rotating ring gear
|
Cable |
9.52mm x 24.38m
|
Brake |
Automatic mechanical cone
|
Dimensions With Control Pack |
L 61.59cm x W 18.16cm x H 26.71cm
|
Dimensions Without Control Pack |
L 61.59cm x W 18.16cm x H 19.9cm
|
Drum Diameter/Length |
8cm/22.9cm
|
Weight |
44kg
|
|
