Description

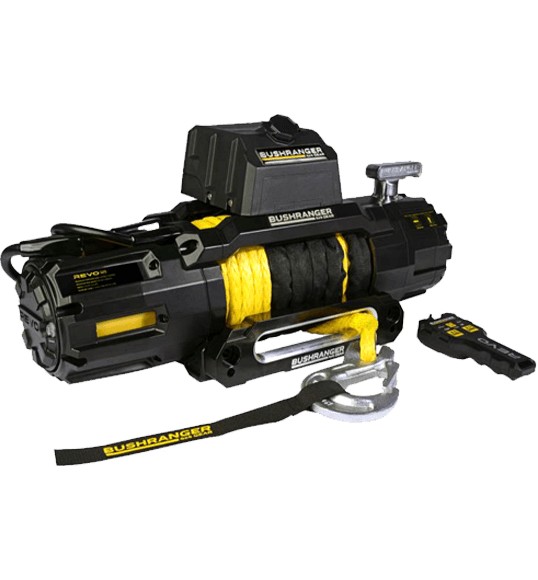

BUSHRANGER REVO 12S

The Bushranger Revo won’t let you be defeated by rugged terrain. Built to tough and uncompromising standards, the Revo’s superior pulling power means it’ll deliver faultless vehicle recovery in any terrain.

[ngg src=”galleries” ids=”35″ display=”basic_imagebrowser”]


BUSHRANGER REVO WINCH
• Multiple mounting orientations. Supplied with an additional mounting bracket for hassle free installation.
• Easy-to-use, spring loaded, cam-style clutch mechanism.
• Zero drag braking system allows for the winch to be powered out under no load without heat build-up, making unspooling a breeze.
• Extra wide gears improve load distribution for less wear. Externally adjustable, 16 position gearbox rotation for ease of fitment and use.
• Strong and lightweight, with a durable black powder coat finish
• 100% load holding, proportional friction braking system located inside the gearbox, away from the drum – eliminating heat transfer to the synthetic rope.
• Fully sealed motor, gearbox and drum for maximum protection from water, dust and debris.
• Series wound, 12V, 5.2HP (10S & 10W) or 6.2HP (12S) motor.
• 4 position motor clocking for versatility during fitting.

Additional information

Maximum Load – (Single Line)

5,443kgs (12,000lbs)

Motor

6.2hp, series wound

Control

Two function hand controller, 30m range (wireless), 5m lead

Gear Train

4 Stage gear driven

Gear Ratio

171:1

Clutch – (Freespooling)

Rotating ring gear

Cable

11mm x 24m Synthetic

Brake

Gearbox mounted, proportional friction brake system

Dimensions

L60.2cm x D16.5cm x H21.6cm

Drum Diameter/Length

6.35cm/24.4cm

Weight

33kg
