| Content | Proud Rhino Winch Mount for Defender 2

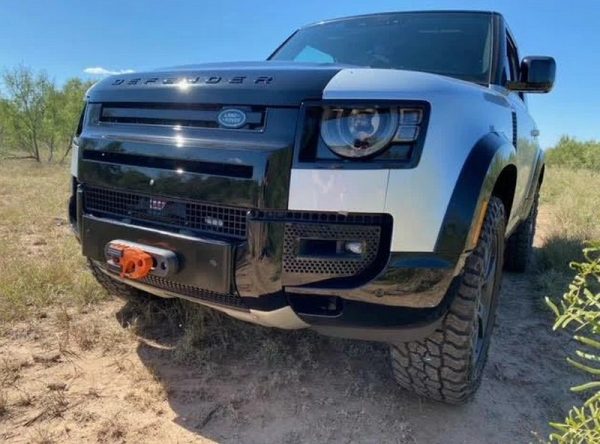

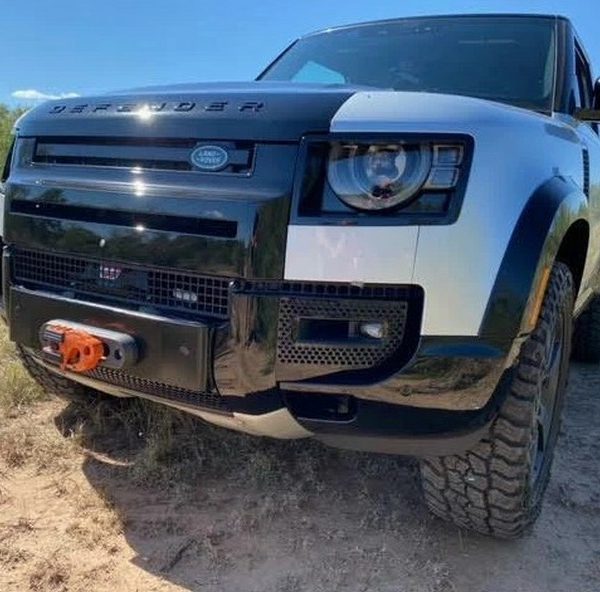

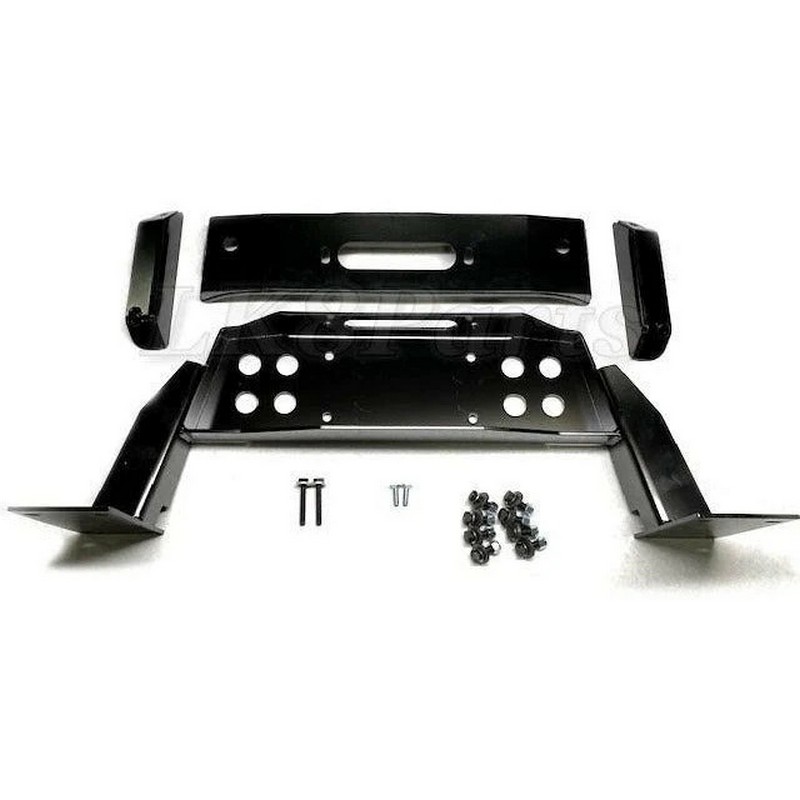

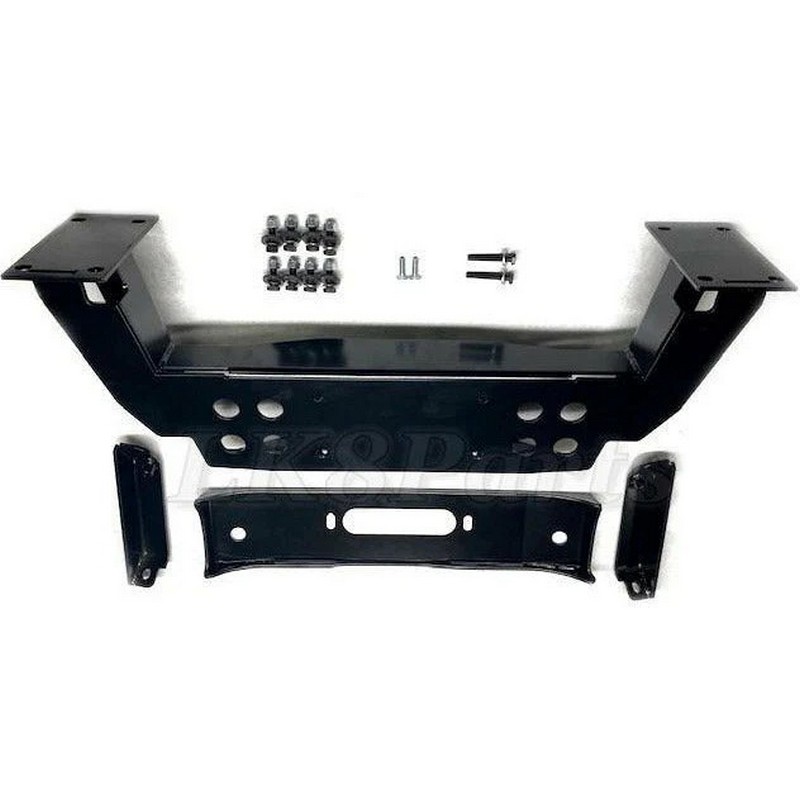

Brand new from Proud Rhino is the Defender 2 winch mount. This winch mount tucks behind your factory bumper, bolting to the frame and factory tow point. The kit comes standard with a Warn VR-EVO 10S, Factor55 Fairlead and Factor55 Ultrahook. We do offer an upgraded package that comes with either the TerraFirma 12-S, WARN Zeon 10s or WARN Zeon 10-S Platinum as well. We also offer this kit as just the tray itself so you can source your own winch. Please note we will not make suggestions on winches that we do not supply as we designed the kit to fit these specific ones we list. Get out and adventure with confidence. Made in the USA.
**For a full front mesh option please see our Stealth Pack kit**
** Please note metal skid plate part number VPLEP0436 will need an extra support bracket to work with the tray. **
Installation instructions link:
https://www.defenderparts.co/wp-content/uploads/2023/03/LK8_Def2_winch_install_2021.pdf | ZEON 12
The ZEON 12 winch will be there to pull you through the toughest recovery, time and time again. This winch hails a new motor, heat dissipating brake, smooth planetary gear train, faster line speed and IP68 rating that is sure to impress.
PERFORMANCE DATA
WARN ZEON WINCHES
Engineered from the ground up, the ZEON winch range sets a new standard in Warn’s premium winch range. Smoother, quieter, stronger and better sealed with an IP68 rating makes this range ready for serious action.
A convertible control pack provides plenty of flexibility by allowing the pack to be removed and mounted separately from the winch. Not only does this allow the winch to be mounted in tight spaces, it also provides the option of a more low profile look.
The ZEON winch range also includes a limited lifetime warranty.
FEATURES
• Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks.
• Satin black powder coated finish with stainless steel fasteners and clutch lever to inhibit corrosion.
• Unique exterior incorporates dust and water rating to IP68 to keep the elements out.
• Lightweight, large diameter winch drum reduces rope wear, and has an integrated rope anchor for easy rope installation.
• Available with steel or Warn Spydura synthetic rope, the Zeon offers pulling capacities from 8,000lbs to 12,000lbs.
• New design planetary gear train and series wound motor delivers fast, quiet and reliable pulling power.
| 16.5TI
This winch is the highest capacity, most technologically advanced 4WD winch in the industry, featuring the full diagnostic ability of Warn thermometric technology, plus the extreme sealing, durability and reliability that Warn ti winches are known for.
PERFORMANCE DATA
WARN CLASSIC WINCHES
Encompassing the Entry Level, Premium, Ultimate Performance and Heavyweight Series’, Warn’s classic winches are packed with features to keep you advancing in even the toughest terrain. With industry leading technology, Warn’s range of winches are designed for high performance and reliability to give you the pulling power you need, when you need it.
Warn 9.5XP model pictured below.
FEATURES
• Using electrical power from the vehicle’s battery, the control box solenoids switch power to the motor, enabling the operator to change the direction of the winch drum rotation.
• Series wound motor delivers fast line speed and long pulls.
• Exclusive Warn design provides positive operator control when winching.
• Aircraft grade wire cable for maximum strength.
• Clevis style safety hook ensures added security and safety during winching.
• Assists in guiding the wire cable onto the spooling drum, minimising damage to the cable.
• Proven to be the most reliable, efficient and durable design in all conditions.
• Powder coat finish affords excellent corrosion resistance.
• Manufactured from quality components and no-compromise construction for the toughest of conditions.
• Remote switch with 3.7m lead (most models) plugs into the winch control box, allowing the operator to control the winch direction and stand clear of the wire cable while operating the winch.
| ZEON 12-S
The ZEON 12-S winch will be there to pull you through the toughest recovery, time and time again. This winch hails a new motor, heat dissipating brake, smooth planetary gear train, faster line speed and IP68 rating that is sure to impress.
PERFORMANCE DATA
WARN ZEON WINCHES
Engineered from the ground up, the ZEON winch range sets a new standard in Warn’s premium winch range. Smoother, quieter, stronger and better sealed with an IP68 rating makes this range ready for serious action.
A convertible control pack provides plenty of flexibility by allowing the pack to be removed and mounted separately from the winch. Not only does this allow the winch to be mounted in tight spaces, it also provides the option of a more low profile look.
The ZEON winch range also includes a limited lifetime warranty.
FEATURES
• Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks.
• Satin black powder coated finish with stainless steel fasteners and clutch lever to inhibit corrosion.
• Unique exterior incorporates dust and water rating to IP68 to keep the elements out.
• Lightweight, large diameter winch drum reduces rope wear, and has an integrated rope anchor for easy rope installation.
• Available with steel or Warn Spydura synthetic rope, the Zeon offers pulling capacities from 8,000lbs to 12,000lbs.
• New design planetary gear train and series wound motor delivers fast, quiet and reliable pulling power.

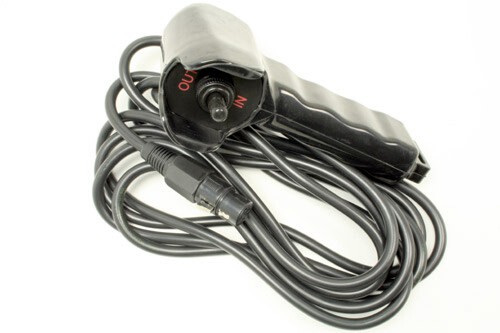

| REPLACEMENT REMOTE CONTROL FOR TF WINCH
- Replacement Wired Remote for the Terrafirma TF3301 winch.
- Direct replacement and will simply plug and play.
Fits ALL VEHICLES PICKUPS ALL. | TERRAFIRMA BLACK WINCHING AND RECOVERY KIT BAG
- Terrafirma Heavy duty Black Winch accessory Bag, internal compartments to store all your kit.
Inside Kits
Also included as part of:
- WINCH KIT - WINCH ACCESSORY - NVS (TF3316)
- WINCH KIT PRO - WINCH ACCESSORY - NVS (TF3317)
- RECOVERY KIT - WINCH ACCESSORY - NVS (TF3318)
Fits ALL VEHICLES PICKUPS ALL and RENEGADE ALL. |
| Additional information |
| Style: |
Warn VR-EVO 10s, Warn 10s, Warn Wirel Platinum, Just the Winch Mount, TerraFirma 12k Winch w/ Synthetic Line
|
|
| Maximum Load – (Single Line) |
5443kgs (10,000lbs)
|
| Motor |
12V DC, series wound
|
| Control |
Remote switch, 3,7m lead
|
| Gear Train |
3 Stage Planetary
|
| Gear Ratio |
216:1
|
| Clutch – (Freespooling) |
Rotating ring gear
|
| Cable |
9.52mm x 24.38m
|
| Brake |
Automatic mechanical cone
|
| Dimensions With Control Pack |
L 61.59cm x W 18.16cm x H 26.71cm
|
| Dimensions Without Control Pack |
L 61.59cm x W 18.16cm x H 19.9cm
|
| Drum Diameter/Length |
8cm/22.9cm
|
| Weight |
44kg
|
|
| Maximum Load – (Single Line) |
7484kgs (16,500lbs)
|
| Motor |
4.6hp, series wound
|
| Control |
Remote switch, 3,7m lead
|
| Gear Train |
3 Stage Planetary
|
| Gear Ratio |
315:1
|
| Clutch – (Freespooling) |
Rotating ring gear
|
| Cable |
27mm x 11mm dia.
|
| Brake |
Automatic, direct drive one
|
| Dimensions |
L 62.8m x D21.16cm x H25.4cm
|
| Drum Diameter/Length |
9cm/21cm
|
| Weight |
63kg
|
|
| Maximum Load – (Single Line) |
5443kgs (10,000lbs)
|
| Motor |
12V DC, series wound
|
| Control |
Remote switch, 3,7m lead
|
| Gear Train |
3 Stage Planetary
|
| Gear Ratio |
216:1
|
| Clutch – (Freespooling) |
Rotating ring gear
|
| Cable |
9.5mm x 30.5m
|
| Brake |
Automatic mechanical cone
|
| Dimensions With Control Pack |
L 61.59cm x W 18.16cm x H 26.71cm
|
| Dimensions Without Control Pack |
L 61.59cm x W 18.16cm x H 19.9cm
|
| Drum Diameter/Length |
8cm/22.9cm
|
| Weight |
34kg
|
|
| Brand |
TERRAFIRMA
|
| Weight (kg) |
0.690000
|
|
| Brand |
TERRAFIRMA
|
| Weight (kg) |
0.920000
|
|
