In Stock

Front Runner Load Bar Kit for Land Rover New Defender 90/110 (2020-Current)

$353

Transport gear over the roof of your Land Rover New Defender 90/110 with this low-profile set of Load Bars. This kit allows the use of many Front Runner rack accessories, without the need to install a full roof rack.

SKU: KRLD038 Categories: , , Tags: , , ,

Description

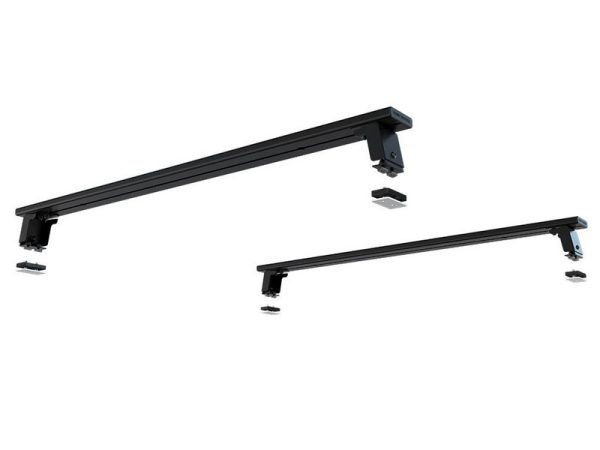

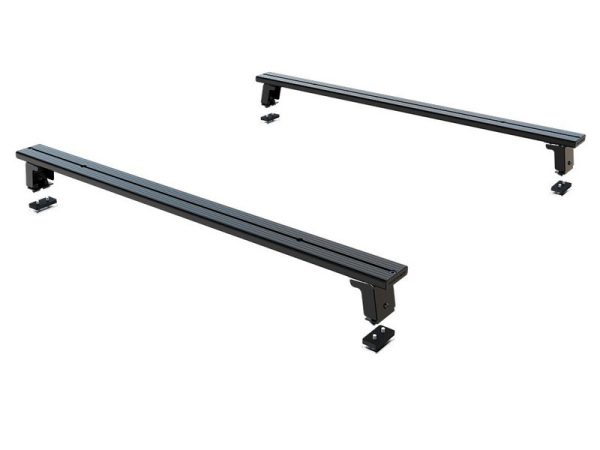

LAND ROVER NEW DEFENDER(2020-CURRENT) 90/110 LOAD BAR KIT – BY FRONT RUNNER

– Compatible with the Land Rover New Defender OEM tracks
– Includes four (4) mounting feet and two (2) 1255mm Load Bars that fit into the factory/OEM vehicle tracks
– Load Bars are mounted via mounting feet that bolt directly onto the tracks

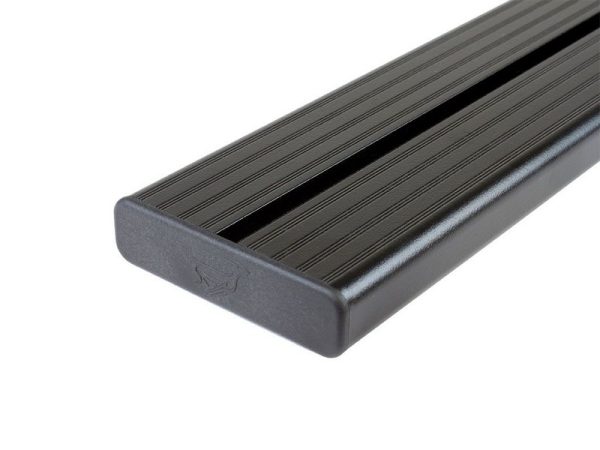

– Uses the same strong, corrosion-free aluminum slats found in Front Runner racks

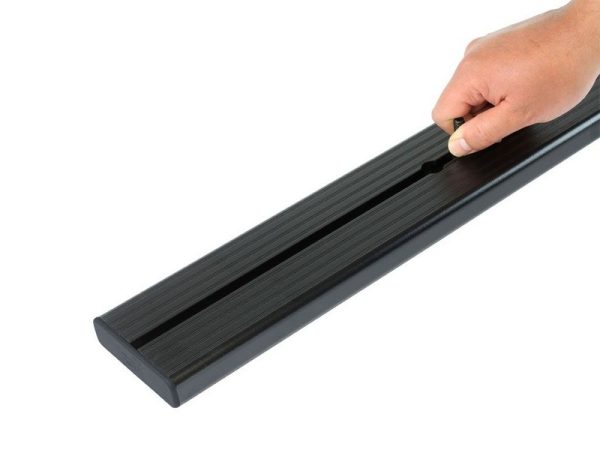

– Sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats
– Made from steel and durable, weather-resistant black powder coated aluminum
– Includes all hardware, components and installation guide needed to fit Load Bars on a vehicle

KRLD038 – Land Rover New Defender(2020-Current) 90/110 Load Bar Kit
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8″) to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.

If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8″) to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.

If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8″) to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.

INSTALL
Installation Instructions for FASS017
Installation Instructions for WDLB001

Additional information

Consisting of:

2x FASS017 – Foot Set / 75mm-85mm
1x LBSK014 – Roof Load Bar Pair 1255mm(W)
1x RRAC044 – Slat to Load Bar Conversion end Cap Kit
2x RRAC930 – Land Rover New Defender (L663) OEM Track Mount Kit
Material Used:

Black epoxy powder – coated T6 aluminium
Approximate Installed Weight:

6.1kg (13.45lbs)
Shipping Dimensions:

Width: 150mm (6")
Length: 1385mm (55")
Height: 145mm (6")
Shipping Weight:

Weight: 5.89kg (13lbs)
