• Includes two output socket types – a standard DC socket and a 2-pin threaded socket.
• Mounts universally to a desired surface or panel.
• Supplied with a heavy-duty, 20ft / 6M long 10AWG cable with eyelets and 15A blade fuse
Additional information
Additional information
Consists of:
1 x Standard DC outlet
1 x 2-pin threaded DC outlet
10AWG Wiring
Product Dimensions:
89mm (3.5") D x 114mm (4.5") W x 56mm (2.2") H
Weight:
1.2 kg (2.62lbs)
Reviews (0)
Reviews
There are no reviews yet.
Be the first to review “Dometic Hardwiring Kit DC” Cancel reply
Supply power from your starter or an auxiliary battery to anywhere in your vehicle.
Mount Front Runner roof rack feet into this smart and strong universal track.
Effortlessly convert your Slimline II Roof Rack to an expedition style rack with rails. This kit includes all hardware and components needed to fit rails around the entire perimeter of a 1165mm wide Front Runner Slimline II Roof Rack.
These adaptor plates give you the ability to attach a Thule slotted Load Bar or Aero Bar and Thule Accessories to a Front Runner Roof Rack. These plates can also be used to mount a Front Runner Slimline II Roof Rack Tray to Thule slotted Load Bars.
Effortlessly convert your Slimline II Roof Rack to an expedition style rack with rails. This kit includes all hardware and components needed to fit rails to either the front or back of a 1255mm wide Front Runner Slimline II Roof Rack.
Effortlessly convert your Slimline II Roof Rack to an expedition style rack with rails. This kit includes all hardware and components needed to fit rails around the entire perimeter of a 1255mm wide Front Runner Slimline II Roof Rack.
Content

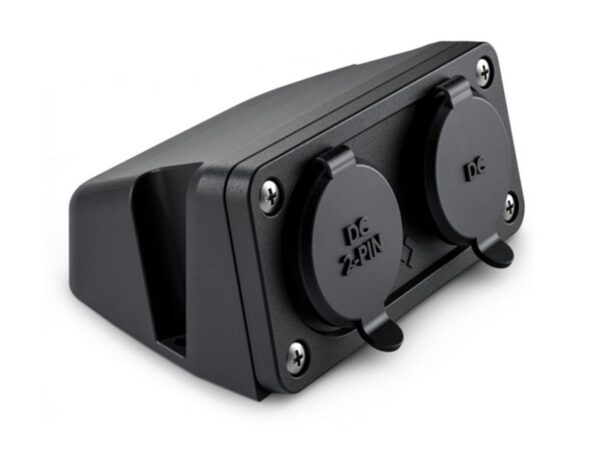

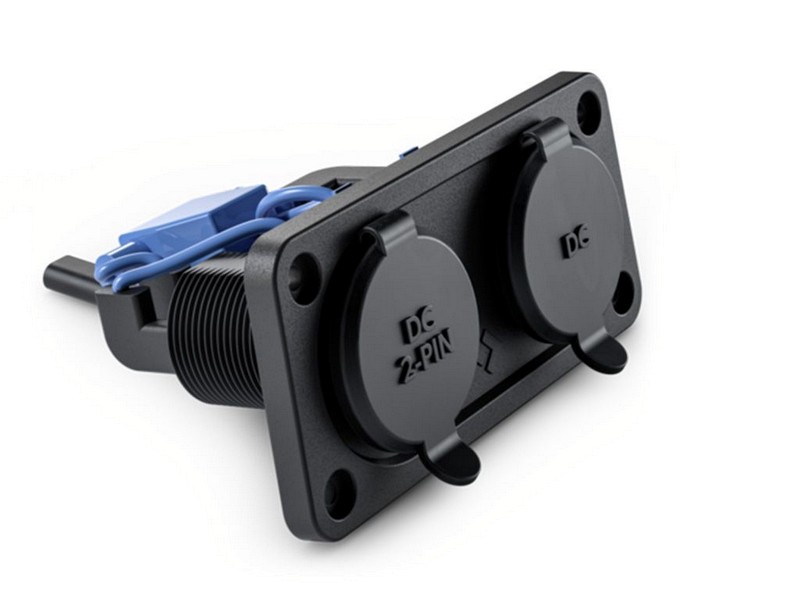

DOMETIC HARDWIRING KIT - DC
• Includes two output socket types - a standard DC socket and a 2-pin threaded socket.
• Mounts universally to a desired surface or panel.
• Supplied with a heavy-duty, 20ft / 6M long 10AWG cable with eyelets and 15A blade fuse
UNIVERSAL TRACK NON DRILLED / 1800MM(L) - BY FRONT RUNNER
The Front Runner Tracks have been designed to accommodate a stud plate which slides into the T-slot of the track and enables the foot assembly to be secured with nyloc nuts before the roof rack bolts on to the foot.
• Suitable for universal fitment of a roof rack should the vehicle roof allow.
• Often used for trailers and canopies to mount a rack or load bars.
• Each track is supplied with fitted double-sided tape and a section of pre-cut rubber, which is used to protect the vehicle roof from the track.
• Powder coated black.
• Comes in pairs.
VIDEOS:
EXPEDITION RAIL KIT - FRONT OR BACK - FOR 1165MM(W) RACK - BY FRONT RUNNER
Convert your Front Runner Slimline II Roof Rack at any time to a classic looking safari style basket shaped roof rack. Please note: this kit only works with 1165mm wide Front Runner Slimline II Roof Racks.
• Install in minutes.
• No drilling required.
• Adds extra cargo support.
• Attractive, low profile design.
• Mounting hardware included.
• Powder coated with the same durable, weather resistant finish as the Slimline II Roof Rack.
• Manufactured with corrosion resistant, high-density aluminum components.
• The Expedition Rails add 61mm / 2.4" to the height of the roof rack.
The modular bolt on design allows you to remove rail components whenever needed, ie. to mount a roof top tent.
DID YOU KNOW? This Front Runner Full Perimeter Expedition Rail Kit can be easily converted to a 3/4, half, or 1/4 sized rail kit using included side rail adapter brackets!
PLEASE NOTE: The side lengths of the Expedition Rails may need to be trimmed to fit the specific length of your rack or for the custom configuration of your choosing. A simple hacksaw can be used to make the cuts. See the fitment guide in the INSTALLATION TAB for more information.
Videos:
RACK ADAPTOR PLATES FOR THULE SLOTTED LOAD BARS - BY FRONT RUNNER
These adaptor plates give you the ability to attach 2 Thule slotted Load Bars or Aero Bars to a Front Runner Slimline II Roof Rack.
If you currently own Thule Accessories and would like to use them with a Front Runner Slimline II Roof Rack, you can use your Thule load bars or Aero Bars to mount your accessories (e.g. Bike Mounts or Kayak mounts) to the rack.
If you currently own Thule Load Bars on your vehicle, you can also use these adapter plates to mount a Front Runner Slimline II Roof Rack Tray to your load bars.
Works with both the SLOTTED-SQUARE and AERO Thule Load Bars. This adapter plate DOES NOT work with the Thule rectangular load bars that do not have slots (ie. the basic Thule load bar found in the USA.)
• 3CR12 stainless steel.
• Black powder coated.
• Mounts onto individual slats via the T-slot system.
• T-slot bolts included.
• Pre-cut fitment holes.
VIDEOS:
EXPEDITION RAIL KIT - FRONT OR BACK - FOR 1165MM(W) RACK - BY FRONT RUNNER
Convert your Front Runner Slimline II Roof Rack at any time to a classic looking safari style basket shaped roof rack. Please note: this kit only works with 1255mm wide Front Runner Slimline II Roof Racks.
• Install in minutes.
• No drilling required.
• Adds extra cargo support.
• Attractive, low profile design.
• Mounting hardware included.
• Powder coated with the same durable, weather resistant finish as the Slimline II Roof Rack.
• Manufactured with corrosion resistant, high-density aluminum components.
• The Expedition Rails add 61mm / 2.4” to the height of the roof rack.
The modular bolt on design allows you to remove rail components whenever needed, ie. to mount a roof top tent.
Can be used at the front or rear of the Slimline II Roof Rack. To add rails to BOTH the front and rear, you will need to purchase 2 Front Runner Expedition Rail Front or Back kits.
To add rails completely around the full perimeter of your rack, purchase the appropriate width Front Runner FULL PERIMETER Expedition Rail Kit.
Videos:Fitment:
EXPEDITION RAIL KIT - FULL PERIMETER - FOR 1255MM(W) RACK - BY FRONT RUNNER
Convert your Front Runner Slimline II Roof Rack at any time to a classic looking safari style basket shaped roof rack. Please note: this kit only works with 1255mm wide Front Runner Slimline II Roof Racks.
• Install in minutes.
• No drilling required.
• Adds extra cargo support.
• Attractive, low profile design.
• Mounting hardware included.
• Powder coated with the same durable, weather resistant finish as the Slimline II Roof Rack.
• Manufactured with corrosion resistant, high-density aluminum components.
• The Expedition Rails add 61mm / 2.4” to the height of the roof rack.
The modular bolt on design allows you to remove rail components whenever needed, ie. to mount a roof top tent.
DID YOU KNOW? This Front Runner Full Perimeter Expedition Rail Kit can be easily converted to a 3/4, half, or 1/4 sized rail kit using included side rail adapter brackets!!
PLEASE NOTE: The side lengths of the Expedition Rails may need to be trimmed to fit the specific length of your rack or for the custom configuration of your choosing. A simple hacksaw can be used to make the cuts. See the fitment guide in the INSTALLATION TAB for more information.
VIDEOS:
Weight
Dimensions
N/A
N/A
N/A
N/A
N/A
N/A
Additional information
Consists of:
1 x Standard DC outlet
1 x 2-pin threaded DC outlet
10AWG Wiring
Product Dimensions:
89mm (3.5") D x 114mm (4.5") W x 56mm (2.2") H
Weight:
1.2 kg (2.62lbs)
Consists of:
1 x Pair of tracks
1 x Pair of rubber track liner
Installation Hardware
Fitment Guide
Materials used:
Black powder coated aluminum
Rubber
Product Dimensions:
1800mm (70.9") L x 45mm (1.8") W x 15mm (0.6") H
Weight:
2.6kg (5.7lbs)
Fitment:
2021 Land Rover Defender 90 L663 5 Door
2021 Land Rover Defender 110 L663 5 Door
2019-2020 Land Rover Defender 110 2DR Pick Up
2019-2020 Land Rover Defender 110 4DR Pick Up
2019-2020 Land Rover Defender 110 5dr Station Wagon
2019-2020 Land Rover Defender 130 2DR Pick Up
2019-2020 Land Rover Defender 130 4DR Pick Up
2019-2020 Land Rover Defender 90
2019-2020 Land Rover Defender 90 2DR Pick Up
2019-2020 Land Rover Defender 90 3DR Station Wagon
2015-2016 Land Rover Defender 110
2015-2016 Land Rover Defender 130
2015-2016 Land Rover Defender 130 2.2
2015-2016 Land Rover Defender 130 4DR Pick Up
2015-2016 Land Rover Defender 90
2015-2016 Land Rover Defender 90 2DR Pick Up
2015-2016 Land Rover Defender 90 3DR Station Wagon
2014-2016 Land Rover Defender 110 2DR Pick Up
2014-2016 Land Rover Defender 110 4DR Pick Up
2014-2016 Land Rover Defender 110 5DR Station Wagon
2014-2016 Land Rover Defender 130 2DR Pick Up
Consists of:
2x RRAC065 – Expedition Tubing A (480.5mm & 365.5mm)
2x RRAC071 – Expedition Rail Corner Set
2x RRAC072 – Expedition Rail LH & RH Drop Set
3x RRAC073 – Expedition Rail Joiner
1x KRXX001 – Expedition Rail Middle Kit
Min: 752mm (29.6") – Max: 2772mm (109.1") L x 1165mm (45.9") W x 112mm (4.4") H
Weight:
7.5kg (16.5lbs)
Fitment:
– 2021 Land Rover Defender 90 L663 5 Door
– 2021 Land Rover Defender 110 L663 5 Door
– 2019-2020 Land Rover Defender 110 2DR Pick Up
– 2019-2020 Land Rover Defender 110 4DR Pick Up
– 2019-2020 Land Rover Defender 110 5dr Station Wagon
– 2019-2020 Land Rover Defender 130 2DR Pick Up
– 2019-2020 Land Rover Defender 130 4DR Pick Up
– 2019-2020 Land Rover Defender 90
– 2019-2020 Land Rover Defender 90 2DR Pick Up
– 2019-2020 Land Rover Defender 90 3DR Station Wagon
– 2015-2016 Land Rover Defender 110
– 2015-2016 Land Rover Defender 110 4DR Pick Up
– 2015-2016 Land Rover Defender 130
– 2015-2016 Land Rover Defender 130 2.2
– 2015-2016 Land Rover Defender 130 4DR Pick Up
– 2015-2016 Land Rover Defender 90
– 2015-2016 Land Rover Defender 90 2DR Pick Up
– 2015-2016 Land Rover Defender 90 3DR Station Wagon
– 2014-2016 Land Rover Defender 110 2DR Pick Up
– 2014-2016 Land Rover Defender 110 5DR Station Wagon
– 2014-2016 Land Rover Defender 130 2DR Pick Up
Works with:
Both the SLOTTED SQUARE and AERO Thule Load Bars.
Materials used:
2.5mm (0.098") 3CR12 stainless steel, supplied with mountings for Aero and Square Bar
Consists of:
4 x Thule Load Bar adaptors and a nuts and bolts kit
Product Dimensions:
L 285mm (11.22") x W 205mm (8.07") x H 55mm (2.16")
Weight:
2kg (4.4lbs)
Consists of:
RRAC066 – Expedition Tubing D (525.5mm and 365.5mm)RRAC071 – Expedition Rail Corner Set
RRAC072 – Expedition Rail LH & RH Drop Set
RRAC073 – Expedition Rail Joiner
485mm (19.1") L x 1255mm (49.4") W x 112mm (4.4") H
Weight:
2.42kg (5.3lbs)
Fitment:
2021 Land Rover Defender 90 L663 5 Door
2021 Land Rover Defender 110 L663 5 Door
2019-2020 Land Rover Defender 110 2DR Pick Up
2019-2020 Land Rover Defender 110 4DR Pick Up
2019-2020 Land Rover Defender 110 5dr Station Wagon
2019-2020 Land Rover Defender 130 2DR Pick Up
2019-2020 Land Rover Defender 130 4DR Pick Up
2019-2020 Land Rover Defender 90
2019-2020 Land Rover Defender 90 2DR Pick Up
2019-2020 Land Rover Defender 90 3DR Station Wagon
2015-2016 Land Rover Defender 110
2015-2016 Land Rover Defender 130
2015-2016 Land Rover Defender 130 2.2
2015-2016 Land Rover Defender 130 4DR Pick Up
2015-2016 Land Rover Defender 90
2015-2016 Land Rover Defender 90 2DR Pick Up
2015-2016 Land Rover Defender 90 3DR Station Wagon
2014-2016 Land Rover Defender 110 2DR Pick Up
2014-2016 Land Rover Defender 110 4DR Pick Up
2014-2016 Land Rover Defender 110 5DR Station Wagon
2014-2016 Land Rover Defender 130 2DR Pick Up
Consists of:
2x RRAC066 – Expedition Tubing D (525.5mm and 365.5mm)
2x RRAC071 – Expedition Rail Corner Set
2x RRAC072 – Expedition Rail LH & RH Drop Set
3x RRAC073 – Expedition Rail Joiner
1x KRXX001 – Expedition Rail Middle Kit
Min: 752mm (29.6") – Max: 2772mm (109.1") L x 1255mm (49.4") W x 112mm (4.4") H
Weight:
7.62kg (16.8lbs)
Fitment:
– 2021 Land Rover Defender 90 L663 5 Door
– 2021 Land Rover Defender 110 L663 5 Door
– 2019-2020 Land Rover Defender 110 2DR Pick Up
– 2019-2020 Land Rover Defender 110 4DR Pick Up
– 2019-2020 Land Rover Defender 110 5dr Station Wagon
– 2019-2020 Land Rover Defender 130 2DR Pick Up
– 2019-2020 Land Rover Defender 130 4DR Pick Up
– 2019-2020 Land Rover Defender 90
– 2019-2020 Land Rover Defender 90 2DR Pick Up
– 2019-2020 Land Rover Defender 90 3DR Station Wagon
– 2015-2016 Land Rover Defender 110
– 2015-2016 Land Rover Defender 130
– 2015-2016 Land Rover Defender 130 2.2
– 2015-2016 Land Rover Defender 130 4DR Pick Up
– 2015-2016 Land Rover Defender 90
– 2015-2016 Land Rover Defender 90 2DR Pick Up
– 2015-2016 Land Rover Defender 90 3DR Station Wagon
– 2014-2016 Land Rover Defender 110 2DR Pick Up
– 2014-2016 Land Rover Defender 110 4DR Pick Up
– 2014-2016 Land Rover Defender 110 5DR Station Wagon
– 2014-2016 Land Rover Defender 130 2DR Pick Up
