Description

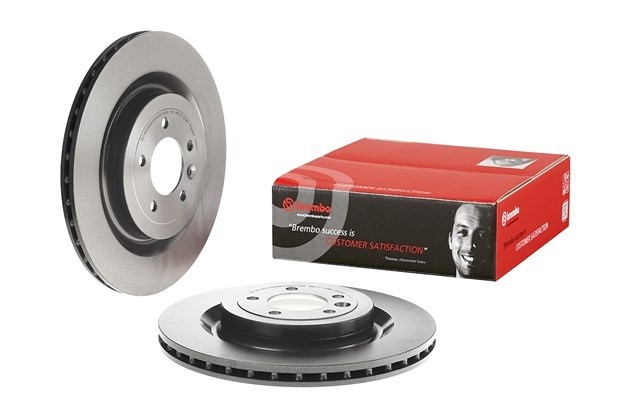

Brembo Brake Disc Painted 09.B504.11

The 09.B504.11 painted brake disc is synonymous with reliability
The Brembo brake disc with special UV paint treatment guarantees superior corrosion resistance for the product, thanks to the protective coating on the outer edges and on the disc hub. The UV paint not only gives the disc a clean, shiny appearance but is also beneficial for the environment as the water-based UV paint treatment does not require the use of chemical solvents and is a low energy consumption process.

✔ OE-equivalent
✔ Brembo quality
✔ ECE-R90 certificate
✔ Safety
✔ High carbon
✔ Anti-corrosion
✔ PVT ventilation

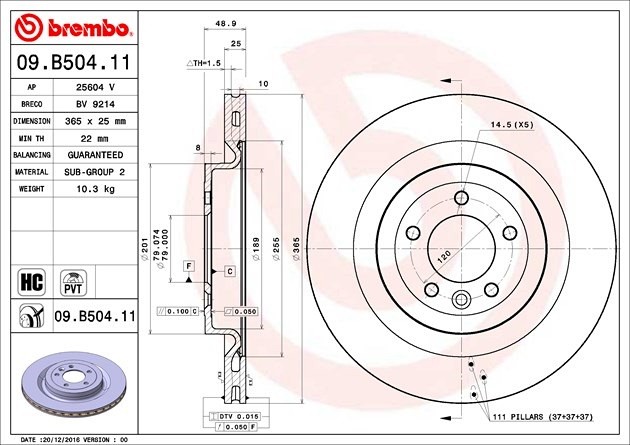

Additional information

Rim Size [in]:

20

Diameter

365mm

Thickness (TH)

25mm

Height (A)

49mm

Number of holes (C)

5

Brake disc type

Ventilated

Centering (B)

79mm

Min. thickness

22mm

Axle

Rear

Units per box

1

Compatible Vehicles

DEFENDER Station Wagon (L663) 2.0 D200 SD4 4×4 147 kW 200 cv 09/19
DEFENDER Station Wagon (L663) 2.0 D240 SD4 4×4 177 kW 241 cv 09/19
DEFENDER Station Wagon (L663) 2.0 P300 Si4 4×4 221 kW 300 cv 09/19
DEFENDER Station Wagon (L663) 2.0 P400e Hybrid 4×4 221 kW 300 cv 09/20
DEFENDER Station Wagon (L663) 3.0 P400 I6 MHEV 4×4 294 kW 400 cv 09/19
DEFENDER Van (L663) 2.0 D200 SD4 4×4 147 kW 200 cv 02/20
DEFENDER Van (L663) 2.0 D240 SD4 4×4 177 kW 241 cv 02/20
DEFENDER Van (L663) 2.0 P300 Si4 4×4 221 kW 300 cv 02/20
DEFENDER Van (L663) 3.0 P400 I6 MHEV 4×4 294 kW 400 cv 02/20
